A1 Refrigeration system

Home / Data center / A1 series mini data center / A1 Refrigeration system / A1 series integrated intellect data center

Data center

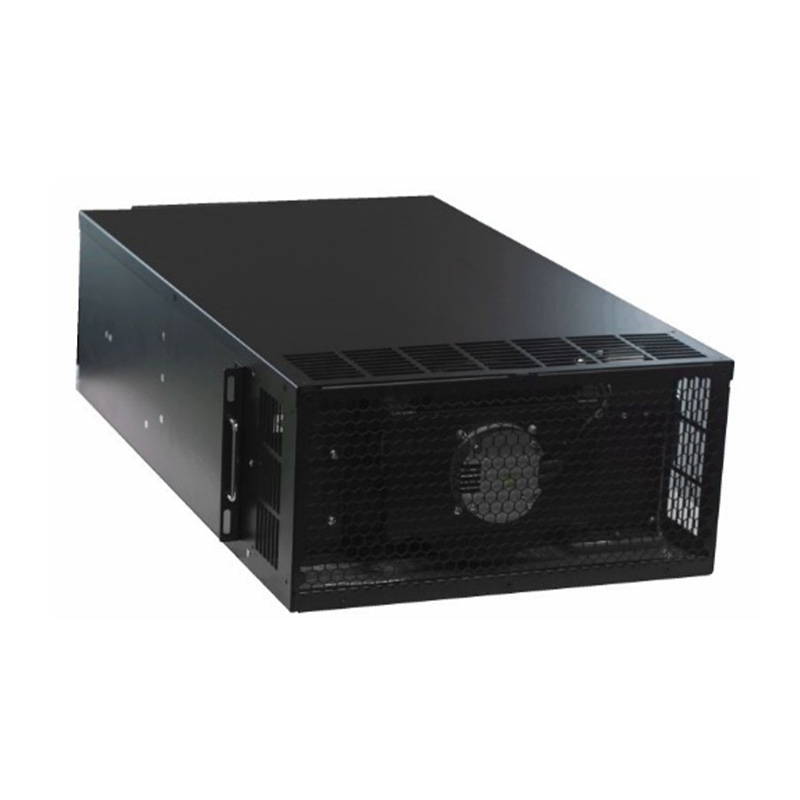

A1 series integrated intellect data center

A1 series integrated intellect data center

  • PRODUCT FEATURES
＞Efficient and energy saving
● Cooling when it close to the heat, full sensible heat ratio Environmentally friendly refrigerant
● Efficiency DC frequency conversion EC compressor
● Centrifugal fans, outdoor axial flow fans are high efficiency and low noise EC fans
● Intelligent control system ensures the dynamic optimization of the system
● The heat exchanger and air channel adopt CFD optimization design, high efficiency and low resistance heat and mass transfer

＞Space saving
● Compact width and depth design, meet
● 600mm-1200mm depth cabinet
● Handles are equipped for easy installation and maintenance
● Electric control box can be pulled, easy to check The outdoor unit covers a small area and can be placed outside the wall or on the roof

＞Efficient and energy saving
● The unit provides a perfect communication protocol of the master computer and completes
● the unit start and stop, temperature and humidity setting, alarm checking and other functions can realize the seamless docking of the whole cabinet
● Complete self protection and alarm function
● Professional self-diagnosis
● Comprehensive parameter detection and adjustment function Power on to start function
● Lightning protection
● Leakage detection
● Refrigerant leak detection
● Provide the main node and RS485 intelligent communication interface, remote monitoring, free to provide communication protocol
● With backup operation, round tour, stack and avoid competition group control function


  • Standards and Specifications

Part No.

DAF04-N

DAF08-N

Air capacity

m/h

800

1500

Operating condition refrigerating capacity

kW

4.2

8.1

Operating condition refrigerating capacity

kW

4.2

8.1

Operating condition refrigerating capacity

kW

3.7

6.5

Operating condition refrigerating capacity

kW

3.7

6.5

Electricity heating capacity

kW

0.5



Maximum load current

A

9.3

15.7

Dimension

(W*D*H)

Indoor

Outdoor

mm

440x760x217 830x325x540

440x760x350
960x396x700

Weight

Indoor

kg

26

36

Outdoor

30.5

43.5
  • ORDER INFORMATION

Part No.

Product Name

Standard color

Package

DAF04-N1-13

Rack type air cooling precision air conditioner indoor unit(4.2KW)

Black

1PCS

DAF04-W-N

Racktypeair cooling precision air conditioner outdoor unit constant temperature type(4.2KW)

Black

1PCS

DAF08-N1-13

Rack type air cooling precision air conditioner indoor unit(8.lW)

Black

1PCS

DAF08-W-N

Rack type air cooling precision air conditioner outdoor unit constant temperature type(8.1W)

Black

1PCS
