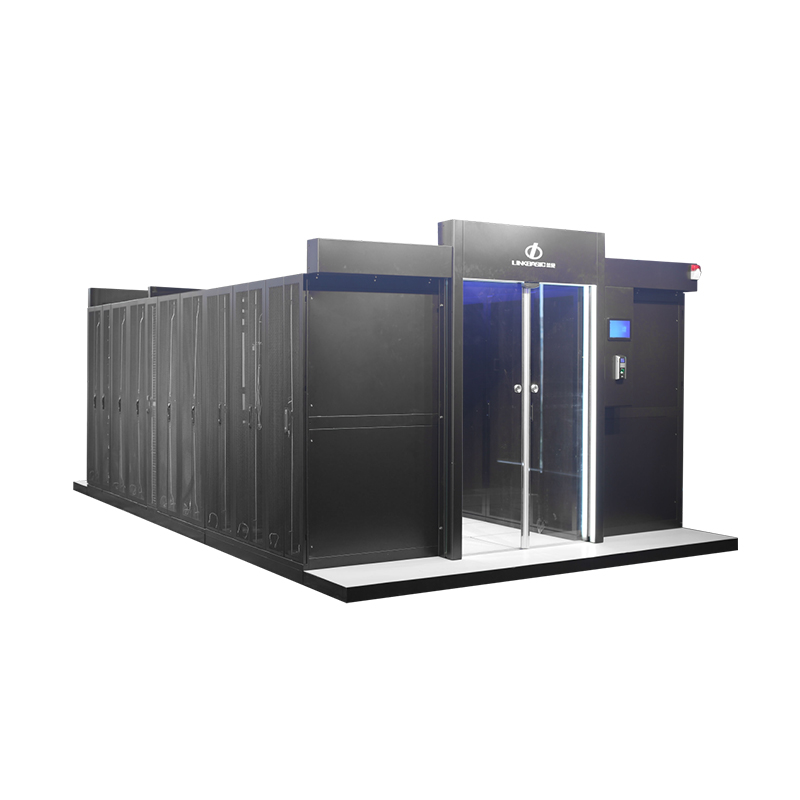

Surface finish: degreasing, pickling, phosphoric, water cleaning, electrostatic powder coating (thickness: 80μm-100μm). Comply with ROHS. Heavy duty nylon silent pulley and aluminum alloy hanger rail, which ensure the sliding door can be opened and closed easily. And the locks on sliding door make it convenient to manage the cold pool channel. Composite cold-rolled steel ensure good strength; the transparent stalinite in the middle of the door make it convenient to check the situation inside channel. The support beam on the top of cold pool channel is for placing stalinite. The thickness of the support beam is 1.5mm.
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7 and GB/T3047.2-92 standard. Compatible with 19 inch international, Metric and ETSI standard.

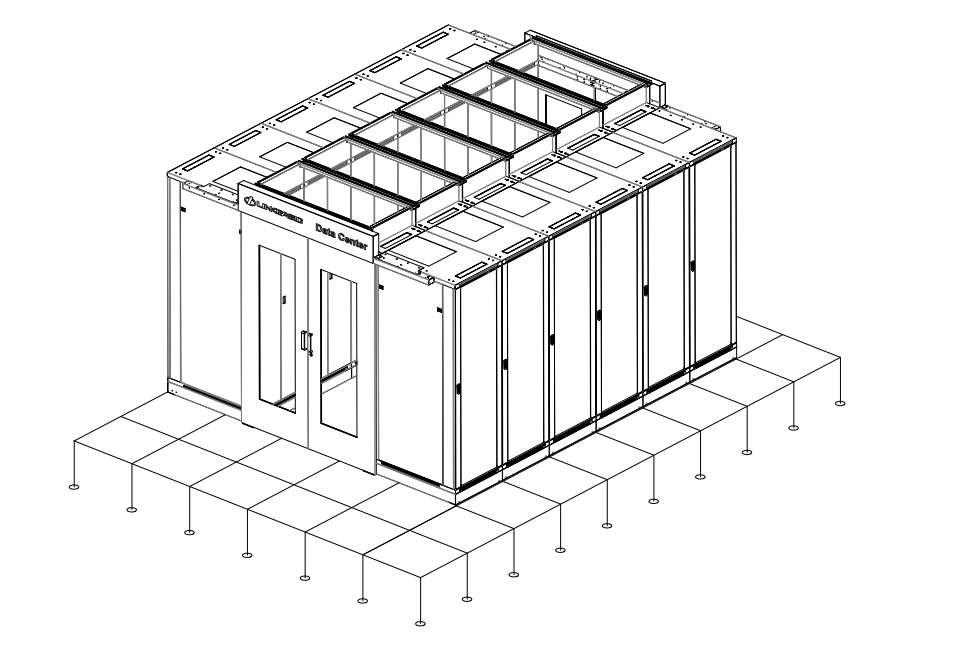

STRUCTURAL：
Widely used in IT room of Finance, Securities and Data Center.
Produced by cold-rolled steel. And adopting high quality heavy duty nylon silent pulley. Hanger rail beam thickness: 2.0 mm, support beam thickness: 1.5mm, sliding door thickness:1.2 mm.
|
Product Name |
Part No. |
Description |
|
600 functional skylight |
NCH01-1215 |
for cabinet with 600mm width, cold channel with 1200mm width, at the head or back of the column, right angle type, for the installation of monitoring equipment and wiring in column, 300mm height mounting plate, cold-rolled steel plate |
|
800 functional skylight |
NCH01-1215-800 |
for cabinet with 800mm width, cold channel with 1200mm width, at the head or back of the column, right angle type, for the installation of monitoring equipment and wiring in column, 300mm height mounting plate, cold-rolled steel plate |
|
300 fixed skylight |
NCH01-1214-300 |
for cabinet with 300mm width, cold channel with 1200mm width, at the middle of the column, fixed glass skylight, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate |
|
600 fixed skylight |
NCH01-1214 |
for cabinet with 600mm width, cold channel with 1200mm width, at the middle of the column, fixed glass skylight, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate |
|

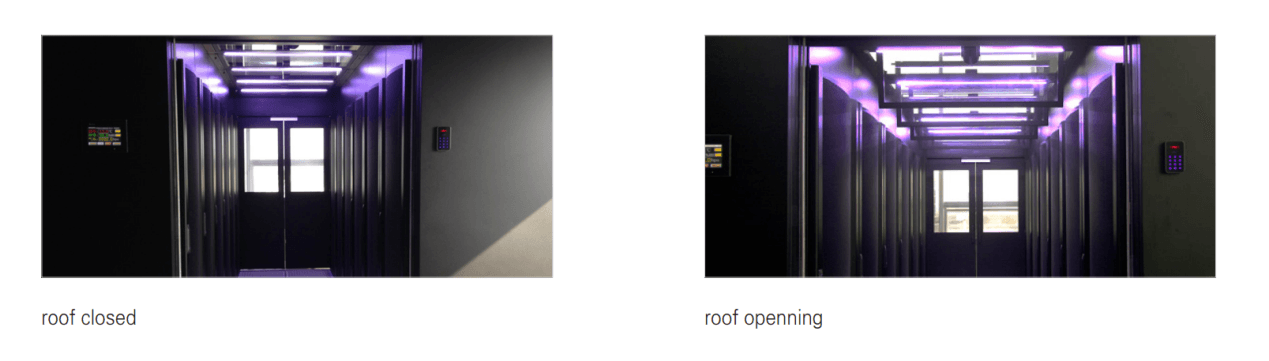

600 single rotating skylight |
NCH01-1216 |
for cabinet with 600mm width, cold channel with 1200mm width, single open, right angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically |
|
600 single rotating skylight |
NCH01-1212 |
for cabinet with 600mm width, cold channel with 1200mm width, double open, right angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically |
|
800mm double rotating skylight |
NCH01-1212-800 |
for 800mm width cabinet and 1200mm width cold channel, double rotating, tight angle type, with 12V magnetic lock, 300mm height mounting plate, 5mm covered protect tempered glass, cold-rolled steel plate, aluminium alloy, fire linkage and open automatically |
|
LED light |
NCH-LED-1200 |
for 1200mm cold channel, 300LUX at a distance of 1.2m from the LED light |
|
Double push-and-pull door |
NCH02-1212 |
for 1200mm height cabinet and 1200mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space |
|
Double push-and-pull door |
NCH02-1212-2200 |
for 2200mm height cabinet and 1200mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space |
|
Double push-and-pull door |
NCH02-1812 |
for 2000mm height cabinet and 1800mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space |
|
Double push-and-pull door |
NCH02-1812-2200 |
for 2200mm height cabinet and 1800mm width cold channel, 19mm insulating glass, manual opening door, with handle, equipped with hidden automatic door closers, reserved skylight control switch space |
|
Access control system |
NCH-MJ01 |
Equipped with magnetic lock, access control device(IC card+password) |
|
Access control system |
NCH-MJ02 |
Equipped with magnetic lock, access control device(IC card+password+fingerprint), automatic door don't need magnetic lock, only access control device available |
|
Auto single rotating sliding door(single column) |
NCH02-1213-DL |
for 1000-1200mm depth and 2000-2200mm height cabinet, 1200mm width cold channel, 12mm tempered glass, electric rail, infrared sensing, reserved skylight control switch space, door box available |
|
Auto single rotating sliding door(single column) |
NCH02-1213 |
for 1000-1200mm depth and 2000-2200mm height cabinet, 1200mm width cold channel, 12mm tempered glass, electric rail, infrared sensing, reserved skylight control switch space, door box available |
|
M type wiring tray |
NCH-MC |
600mm width M type wiring tray on the top of the cabinet, SPCC cold-rolled steel plate, thickness 1.5mm, surface process is the same as the cabinet |
|
V type wiring tray |
NCH-VC |
600mm width M type wiring tray on the top of the cabinet, SPCC cold-rolled steel plate, thickness 1.5mm, surface process is the same as the cabinet |
|
Control box |
NCH04-01 |
Control the skylight with fire linkage function |
