A1 serles mini data center

A1 serles mini data center

  • PRODUCT FEATURES

A1 Linkbasic mini data center solution, It greatly speeds up the construction speed of micro data center, Plug-and-Play, and has features of  high degree of integration, energy-efficient, safe and reliable, high intelligent and adaptable


● Efficient-integration
Integrated cabinet system, power distribution system, refrigeration system, wiring system, monitoring and management system in one

● Energy-efficient
The installation of efficient intelligent refrigeration system, efficient modular UPS, improve electricity efficiency, save energy consumption, PUE value is lower

● Safe and reliable
 The installation of temperature and humidity, smoke sensing, water immersion sensors, real-time monitoring of the internal environment

● High intelligent
 Built-in monitoring and management system, equipped with a touch screen, can directly display temperature and humidity

● Adaptable
 Fully enclosed, refrigeration in the cabinet, self circulation mode to achieve P5X protection level,
 low requirements for the installation site, no
need for special room placement, refrigeration outdoor unit can be placed on the top of the cabinet

● High expandability
Modular design, flexible configuration to meet the rapid expansion
  • Application

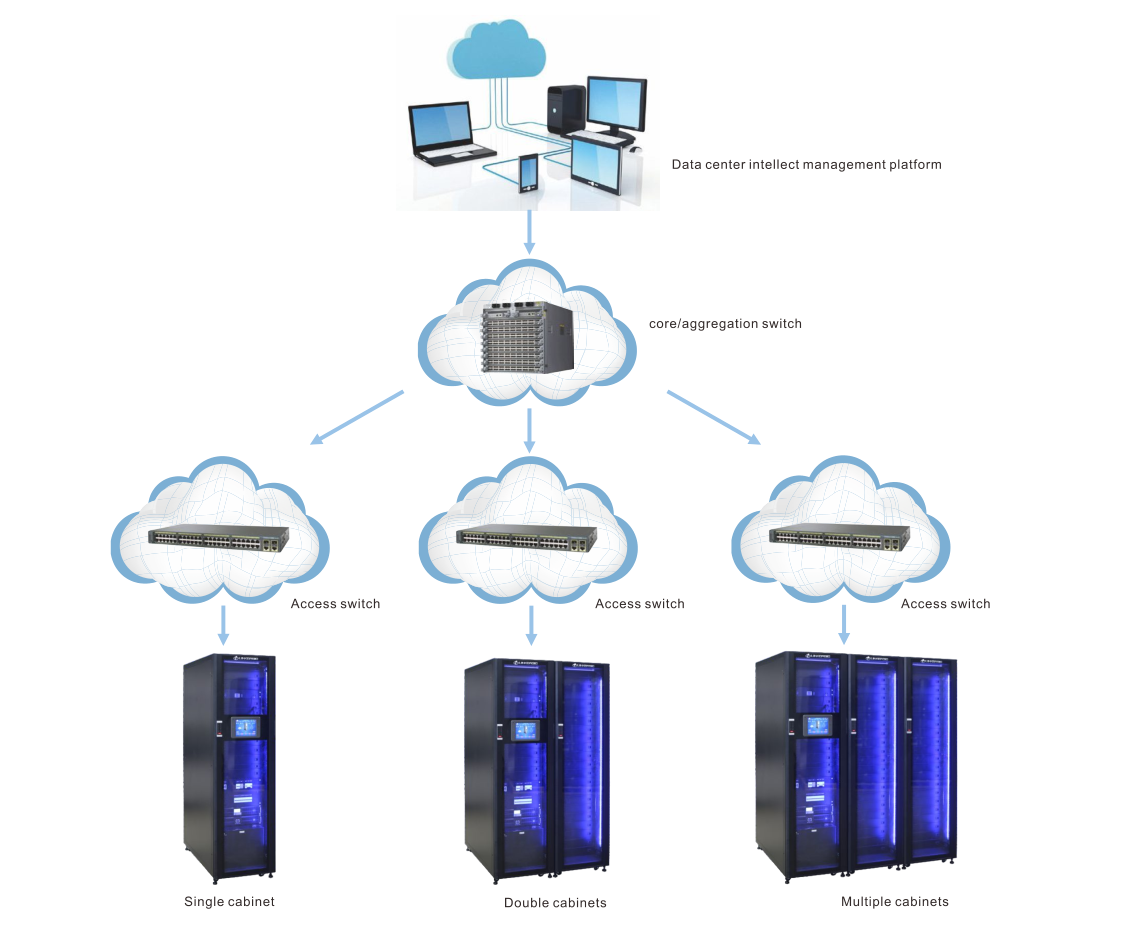

Suitable for application scenario of micro data center, all kinds of distributed dot, branch of  large enterprise, small and medium sized network access points, small and medium-sized enterprise IT equipment access room and logistics warehousing IT workstation

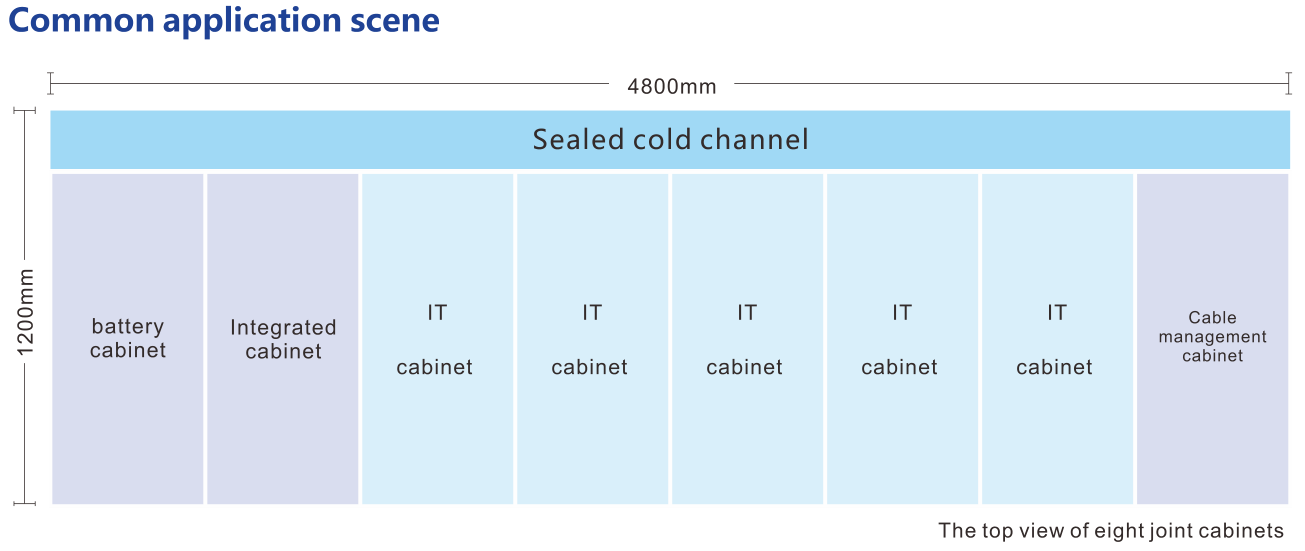

The new architecture of standardization, productization, modular design concept, strong replication, expansion on demand, to provide a strong support for the rapid construction of the cold channel of the micro data center.

Modular components enable rapid deployment and can be separated independently without affecting overall monitoring

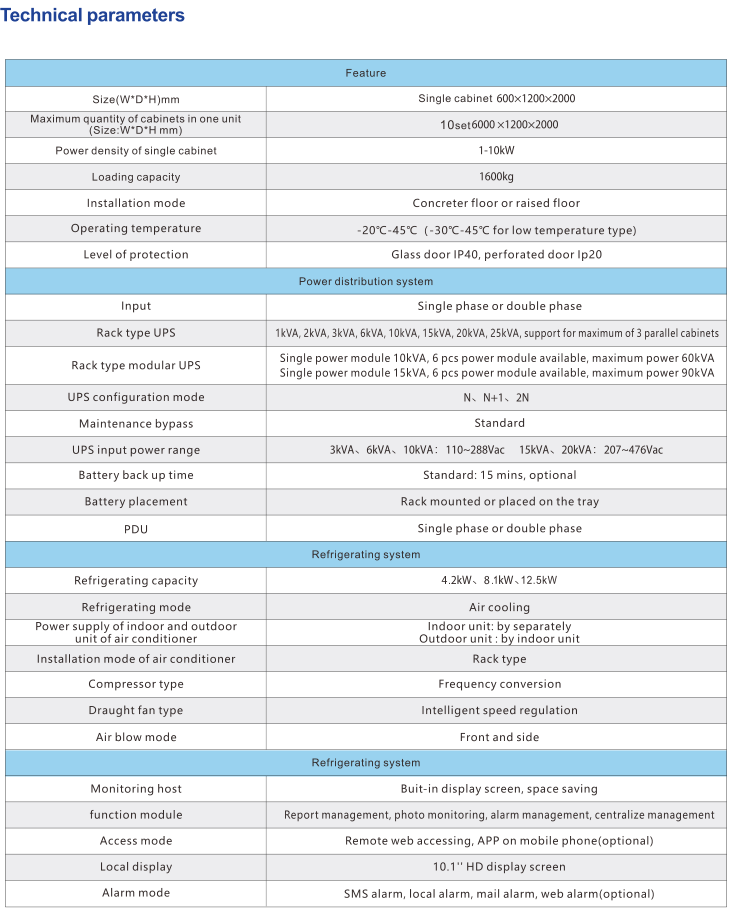

  • TECHNICAL SPECIFICATION
Part Number A1-1R6-03U1-04K1 A1-3R6-10U1-08K1 A1-6R6-30U1-08K3 A1-12R6-60U1-12K5
Quantity of cabinet 1 3 6 12
UPS 3kVA 10kVA 30kVA 60kVA
Air Conditioner 4.2kW 8.1kW 3*8.1kW 5*12.5kW
PDU 16 way intelligent PDU 3*16 way intelligent PDU 6*16 way intelligent PDU 12*16 way intelligent PDU
Battery 12V 7AH Battery pack
Power backup for 15 minutes		 12V 9AH Battery pack
Power backup for 15 minutes		 12V 100AH Lead-acid battery 12V 100AH Lead-acid battery
Dimensions
(Width*Depth*Height)
mm		 600*1200*2000 1800*1200*2000 3600*1200*2000 7200*1200*2000
