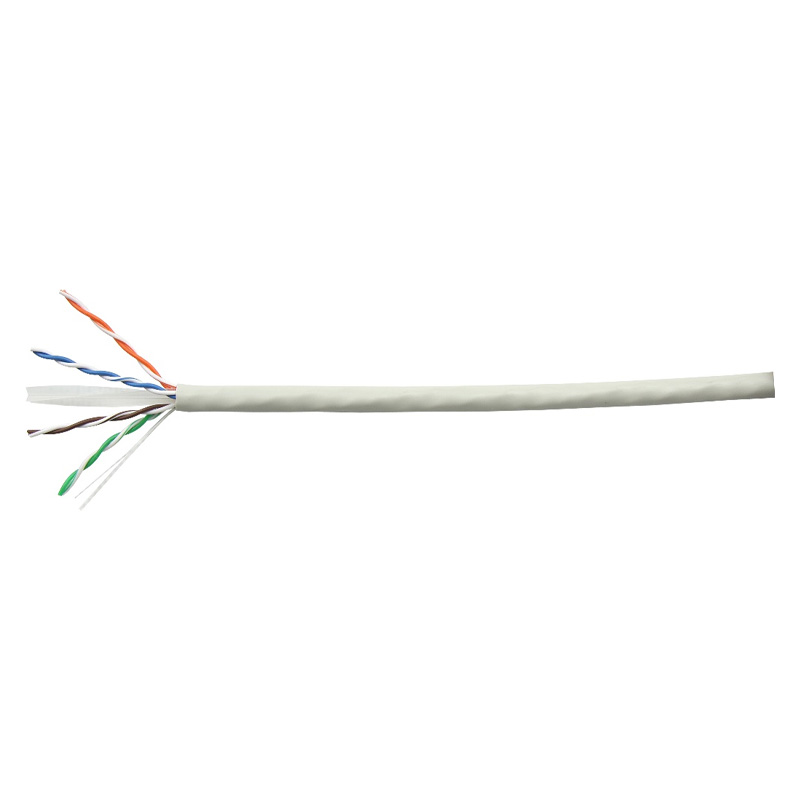

Cat 6A UTP Solid Cable CLA04-UC6A

Cat 6A UTP Solid Cable CLA04-UC6A

● Rated temperature:75℃
● Reference standard: UL Subject 444, ANSI/TIA 568B.2-10& ISO/IEC 11801, IEC 61156-5
● Product standard certification
● Flame test
● Oxygen free copper conductor
● Colour-coded PE insulation
● PVC jacket
● Packaging:Per customer request
  • ELECTRICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz

≤5.6 nF/100M

MAX. Capacitance

unbalance (pF/ 100m)

≤330pF/100M

Nominal Velocity of

Propagation

64%

Max. Delay Skew (ns/100m)

45ns/100M

Max. Conductor DC

Resistance @ 20 Deg. C

9.5Ω /100M

Max. DC Resistance

unbalance @ 20 Deg. C

≤5%

Max. Insulation resistance

(MΩ/ k m)

5000

Max. Operating Voltage-UL

300V
  • CONSTRUCTION

Structure

Construction

UTP

Number of Pairs

4 pairs

AWG

23AWG

Conductor Dimension (mm)

0.57±0.005 mm

Solid or Stranded;

Bare or Tinned

Stranded bare or

tinned copper

Insulation

insulation material

PE

Insulation Dimension [mm)

1.02±0.05mm

Number Colour

(Ring or Strip marking)

1.White/B[ue(Ring) & Blue
2.White/0range(Nng) & Oange
3.White/Gem(Rhg) & Green
4.White/Brown(Ping) & Btuwn

Cross Filler

Yes

Shield

IndividuaISinleld & Material

No

Outer Shield & Material

No

Drain Wire

No

Outer Jacket

Outer Jacket Material

PVC or（LSZH）

Outer Jacket Ripcord

Based On Customer Requirements

Overall Nominal Diameter (mm)

6.40 ±0.30 mm
  • MECHANICAL CHARACTERISTICS

Operating Temp. Range

-20~+75℃

Max. Recommended

110N

PullingTension

Min. Bend Radius (Install)

8 x O.D.

Flame Test

CMX, CMR, CM
  • APPLICATION
● 100 Base-T4
● 100Base-TX
● 100VG-AnyLAN
● 1000Base-T
● 1000Base-TX
● 155Mbps ATM
● 622Mbps ATM
● 10Gb Ethernet
  • ORDER INFORMATION

Part number

Description

AWG

Standard color

Packing Type

Carton

Carton measurement

Carton weight

CLA04-UC6A

Cat 6A UTP solid cable

23AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

16.30KG

CLA04-UC6A-CMR

Cat 6A UTP solid cable

23AWG

RAL7035

Reel

305m(1000ft)

Φ38cm × H27.5cm

16.30KG

CLA04-UC6A-LSZH

Cat 6A UTP solid cable

23AWG

RAL7035

Reel

305m(1000ft)

Φ32cm × H27cm

16.00KG
