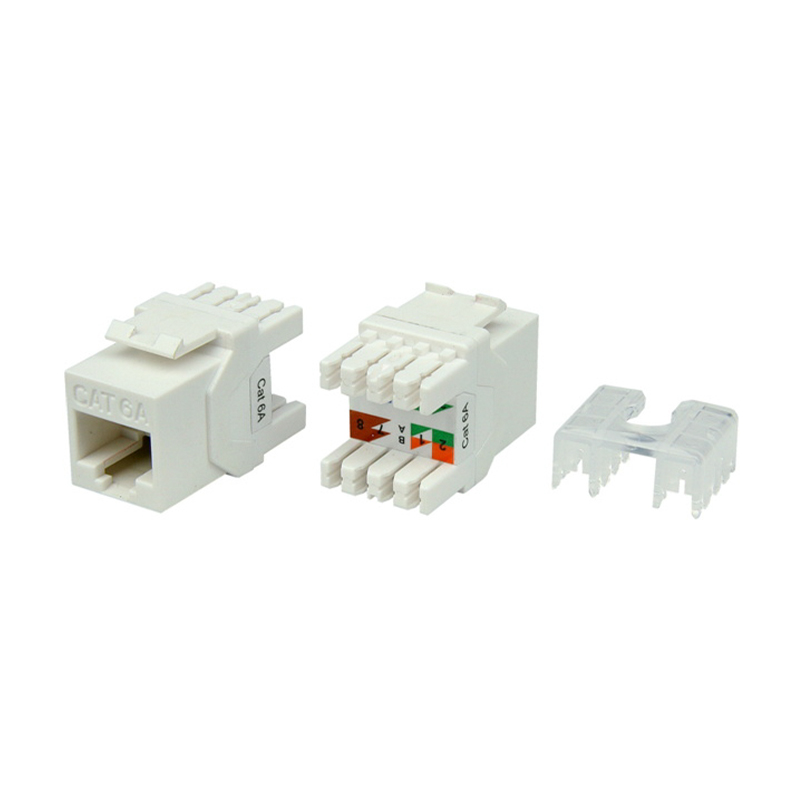

Cat 6A UTP Keystone Jack JKA09-UC6A

Cat 6A UTP Keystone Jack JKA09-UC6A

The new style Jack provides Category 6A system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high-density connectivity in the work area and telecommunications room.

  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance(min)

500MΩ

Return loss(dB)

5.8dB

Next(dB)

4.7dB

Ps next(dB)

5.5dB

  • TECHNICAL SPECIFICATION
Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements
Shielding protects against EMI/RFI interference
Housing : high temperature thermoplastic
Compact jack design, 8 positions and 8 conductors
Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
Easy to be terminated, low attenuation loss and high return loss
High reliability and superior performance
Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKA09-UC6A

Cat6A unshielded keystone jacks (180 degrees)

White

25PCS

250PCS

L 53.5cm×W 31.3cm×H 23.4cm

3.80KG
