Cat5E FTP System

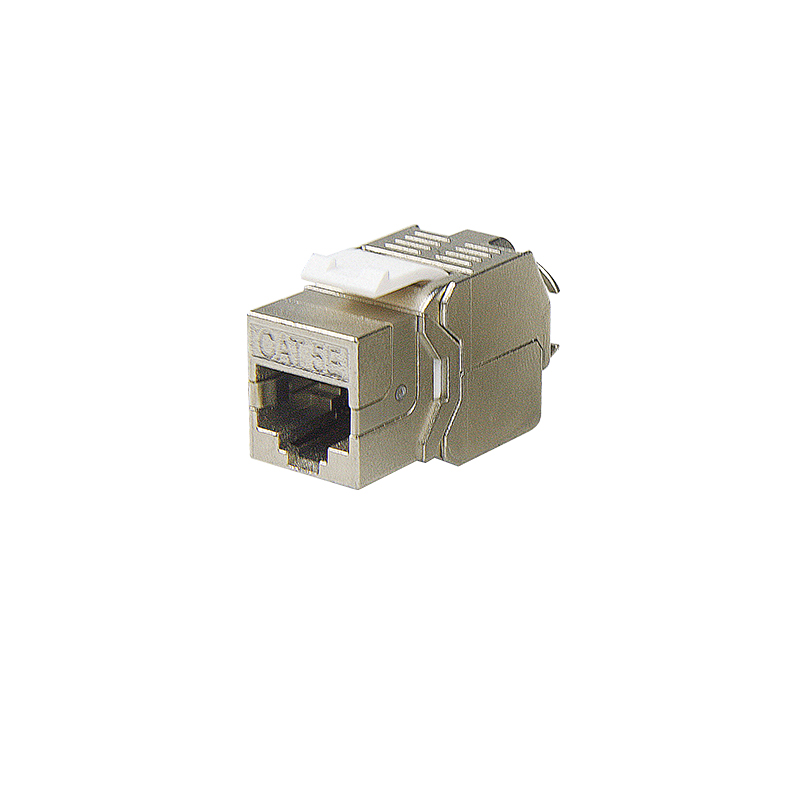

CAT 5E FTP Keystone Jacks JKA09-SC5E

CAT 5E FTP Keystone Jacks JKA09-SC5E

The new style Jack provides Category 5E system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high-density connectivity in the work area and telecommunications room.

  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance(min)

500MΩ

Return loss(dB)

5.8dB

Next(dB)

4.7dB

Ps next(dB)

5.5dB

  • TECHNICAL SPECIFICATION
Available in Cat5E, T568A/B wiring, meet or exceed TIA/EIA Cat5erequirements
Shielding protects against EMI/RFI interference
Housing : high temperature thermoplastic
Compact jack design,8 positions and 8 conductors
Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
Easy to be terminated, low attenuation loss and high return loss
High reliability and superior performance
Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKS09-SC5E

Cat5E shielded keystone jacks (180 degree)

Silver

20PCS

200PCS

L 53.5cm×W 31.3cm×H 23.4cm

9.20KG
