Fiber Patch Cords

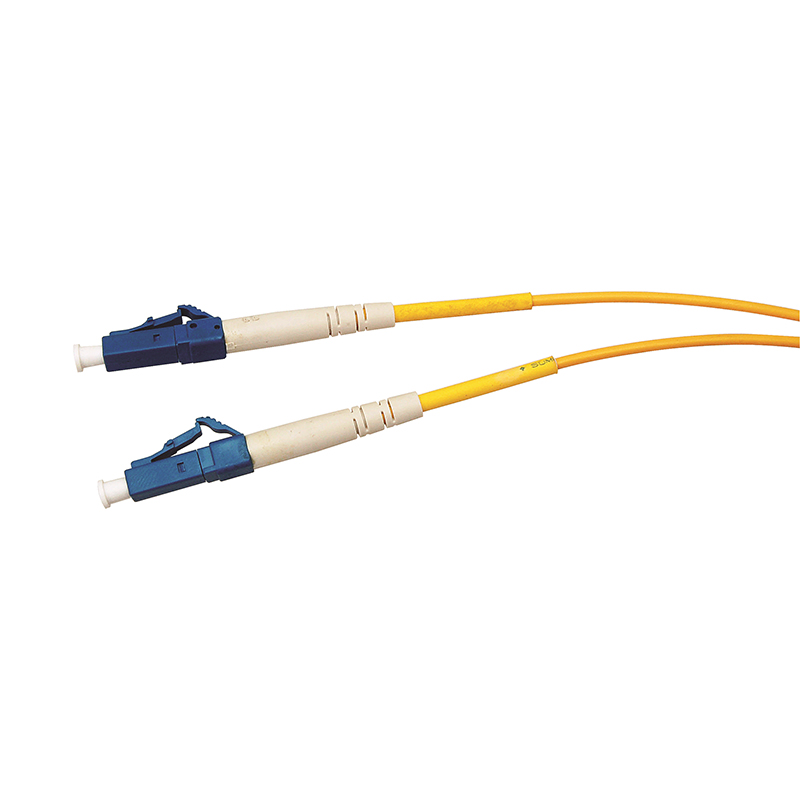

Single mode LC-LC patch cord( duplex) FAS55-2-3

Single mode LC-LC patch cord( duplex) FAS55-2-3

Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are  100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.FC,SC,ST,LC,MU,MTRJ and hybrid Patch Cords are available in both multimode (62.5/125μm and 50/125μm) and single mode cable-types, in duplex and simplex versions. The Plastic optical fiber also are available.
  • CONSTRUCTION

TYPE

SINGLE MODE

INSERTION

LOSS

≤0.3dB

REFLECTION

ATTENUATION

-40℃~+80℃

INSERT AND

PULL TEST

≤0.1dB

INTERCHANGING

CAPABILITY

≤0.2dB

OPERATING

TEMPERATURE

≥45dB

  • TECHNICAL SPECIFICATION
Low insertion loss.
High return loss.
Precise end face inspection by microscope.
Environmentally stable in optical performance .
Provides total immunity to electrical interference.
  • ORDER INFORMATION

Part number

Description

Standard Color

Poly bag

FAS55-2-3

single mode LC-LC patch cord( duplex) 3m

/

1PCS
