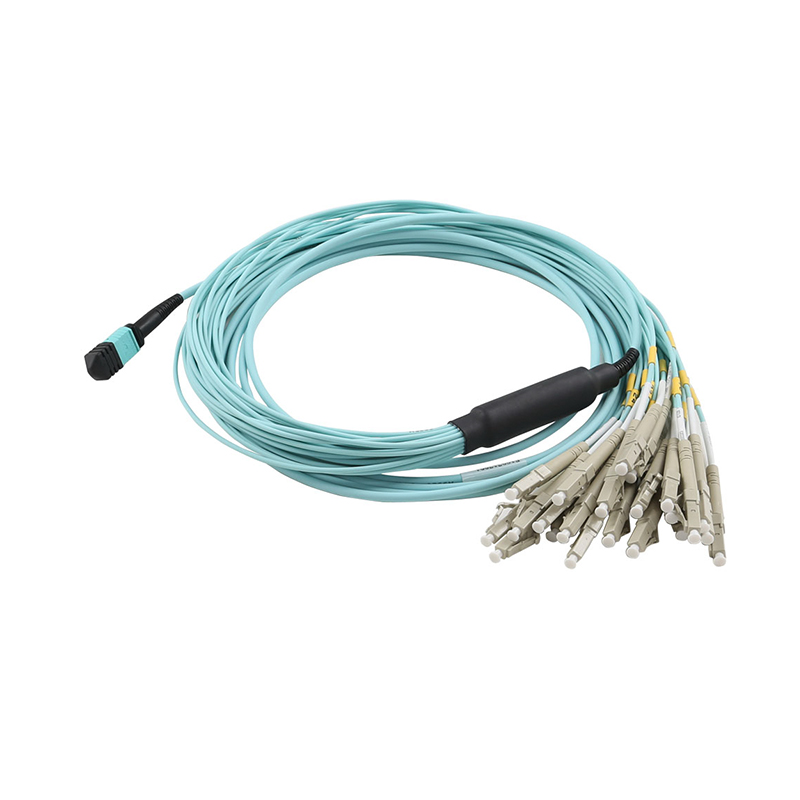

MPO-LC FIBER OPTIC PATCH CORD FAM65

MPO-LC FIBER OPTIC PATCH CORD FAM65

Complied with the standard TIA-568C.3-2008  and YD/T1272.5-2009, it was widely used in the pre-terminated system of the IDC and blocks. This system applies to the 10G Ethernet transmissions and it is also available to the updated system for 40G/100G in the future.

  • TECHNICAL SPECIFICATION
● Ready equipped MPO and LC connectors technical tensile and resilient design for 400N and 100N/CM
● Special test for all the ports of the trunk cable makes higher reliability
● Low loss MPO connector and LC adapter on two sides
● Easily updated to the next generation for 40G and 100G
● 12 cores patch cords, OM3, OM4 and OS2 fiber optic cable, length in meters. Outside coatings can be OFNR, OFNP and LSZH, etc.
● Faster equip
● High density in the wiring panels
● Easy cabling management in the most intensive SAN switch application customized length horizontal and regional cabling -20 C~+75 C
● Connected to MPO adapters and LC ports
● Different options for OM3, OM4 and 9/125 single mode

  • TRANSMISSION PERFORMANCE

Part number

OM3 50/125um(850/1300nm)

OM4 50/125um(850/1300nm)

OS2 9/125um(1310/1550um)

MAX Attenuation (dB/KM)

2.5 / 0.7

2.5 / 0.7

0.36/ 0.22

MIN EMB bandwidth( MHz.KM)

2000/-

4700/-

/

A t t e n u a t i o n   v a r i a t i o n , 7 . 5 m m

radius,250um coated fiber,850nm

< 0.2dB

< 0.2dB

/

A t t e n u a t i o n   v a r i a t i o n , 7 . 5 m m

radius,250um coated fiber,1550nm

/

/

< 0.2dB
  • TECHNICAL PARAMETER

Connector performance

Insertion loss(average)

Insertion loss (max)

Return loss

MPO low loss(Multimode)

0.10dB

0.30dB

N/A

MPO standard loss(Multimode)

0.20dB

0.50dB

N/A

LC or SC (Multimode)

0.08dB

0.15dB

N/A

MPO low loss(single mode)

0.20dB

0.75dB

>60dB

MPO standard loss(single mode)

0.20dB

0.75dB

>60dB

LC or SC (single mode)

0.10dB

0.20dB

>55dB
  • ORDER INFORMATION

Part Number

Description

Package

FAM65-12-OM3-*

12cores multi mode MPO-LC Fiber patch cord

1PCS

FAM65-12-OM4-*

12cores multi mode MPO-LC Fiber patch cord

1PCS

FAS65-12-OS2-*

12cores Single mode MPO-LC Fiber patch cord

1PCS

FAM65-24-OM3-*

24cores multi mode MPO-LC Fiber patch cord

1PCS

FAM65-24-OM4-*

24cores multi mode MPO-LC Fiber patch cord

1PCS

FAS65-24-OS2-*

24cores Single mode MPO-LC Fiber patch cord

1PCS
