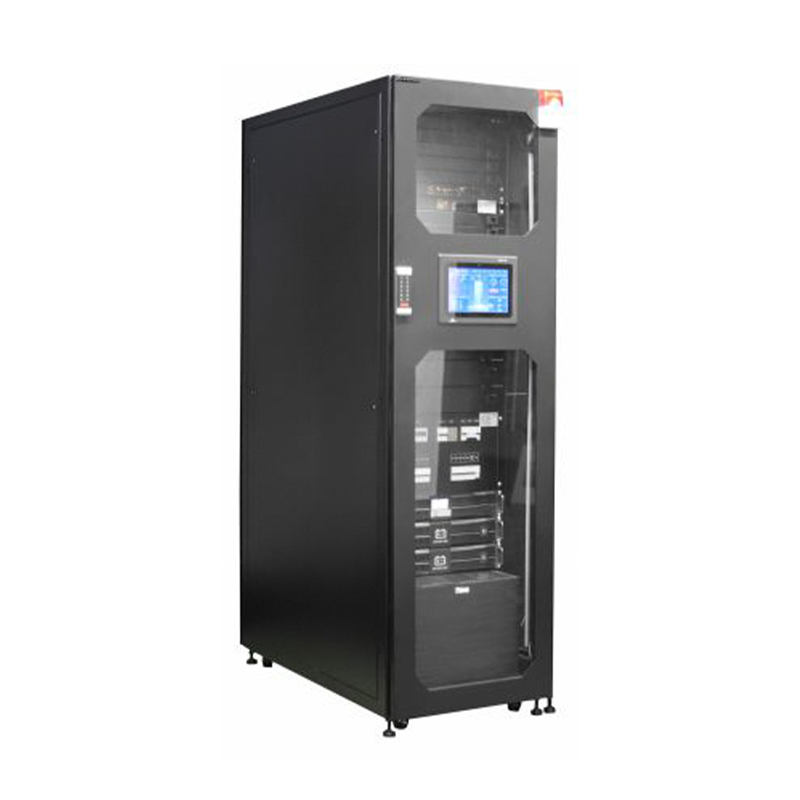

NCS ELECTROMAGNETIC SHIELDING CABINET NCS

NCS ELECTROMAGNETIC SHIELDING CABINET NCS

● Comply with GB12190-90 level C(FS-C) standard.
● Magnetic field: 14KHz ≥70dB 150KHz ≥
● Electric field: 200KHz ~1GHz ≥
● Plane wave: 50MHz ~ 1GHz ≥
● Microwave: 1GHz ~10GHz ≥ 95 dB.
● Level B(FS-B)150KHz~930MHz≥80 dB.
  • TECHNICAL SPECIFICATION
● Shielded enclosure: Airtight enclosure welded by cold rolled steel plate. Surface finishing: galvanizing, powder coating and other anticorrosive treatment.
● Shield door: Welded by cold rolled steel plate and shield reed.
● Filter: Power filter with wide suppressed frequency band and high insertion loss.
● Wave-guide window: Honeycomb style window with mini aerofoil fan on the top plate. Exhaust air rate of each fan: 1.4 cbm/min.
● Others: Optional transmission interface and socked outlet as required.
● Prevente the information leakage of computer, network server, switchboard, etc.
● Prevented the interference of electromagnetic waves.
● Easy operation, reliable.
  • ORDER INFORMATION

Part No

External
dimension/
Width

External
dimension/
Depth

External
dimension/
Height

Internal
dimension/
Width

Internal
dimension/
Depth

Internal
dimension/
Height

32U

700mm

650mm

1850mm

650mm

500mm

1500mm

37U

700mm

650mm

2000mm

650mm

500mm

1600mm

42U

700mm

650mm

2000mm

650mm

500mm

1800mm

Remarks : Can be made as customer required

☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
