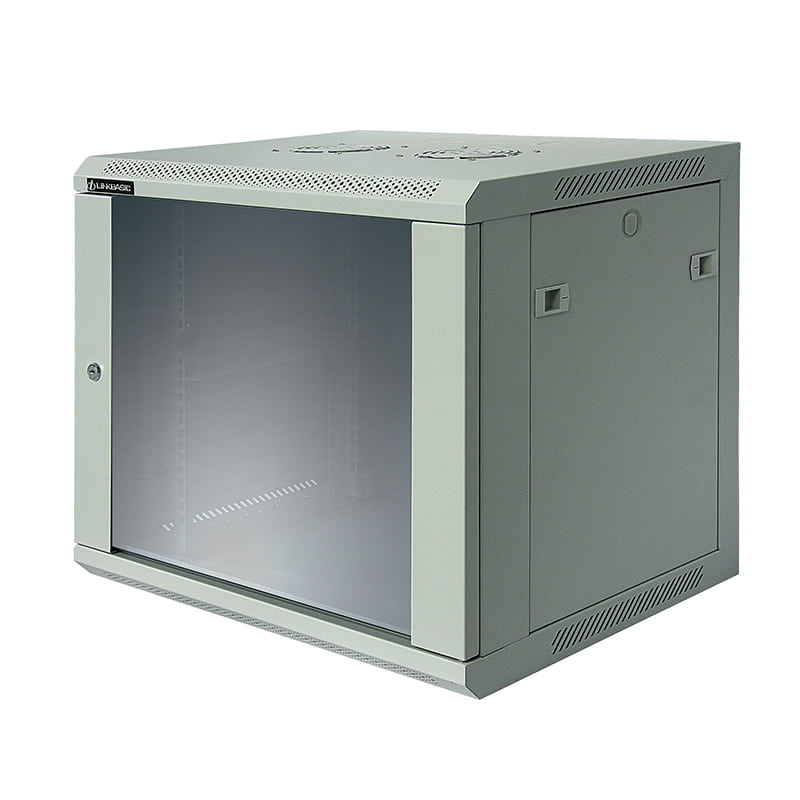

7、wcecabinetComply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
● Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server computer and precision electronic equipments.
● Exquisite design with precise craftsmanship.
● International popular smoky-gray glass front door.
● Loading capacity: 60KG.
● Top and bottom wiring channel could be closed.
● Removable front door and side panel, easily installing and maintaining.
● Surface finish: Degreased, acid cleaned, phosphoric, water cleaned,electro-static powder coating, meet ROHS standard.
● Optional color: black/gray.
● Optional accessories.
● Cool rolled steel
● Thickness: mounting rail:1.2mm
● Else in 0.8mm
● Tempered smoky-gray glass with thickness of 5mm
|
Part No |
Capacity/U |
Width/mm |
Depth/mm |
Height/mm |
CM/Width/m |
CM/Depth/m |
CM/Height/m |
Volume/CBM |
|
WCE06-645-*☆ |
6U |
600 |
450 |
368 |
0.67 |
0.52 |
0.43 |
0.15 |
|
WCE09-645-*☆ |
9U |
600 |
450 |
501 |
0.67 |
0.52 |
0.56 |
0.20 |
|
WCE12-645-*☆ |
12U |
600 |
450 |
635 |
0.67 |
0.52 |
0.70 |
0.24 |
* = Front door(A=Steel Casement Door B=B=Smoky-grey glass door C=Smoky-gray glass door with frame punched
D =Perforation steel door with high ventilation level(hexagonal type))
☆=Colors A=Black(RAL9004) B=Gray(RAL7044)
