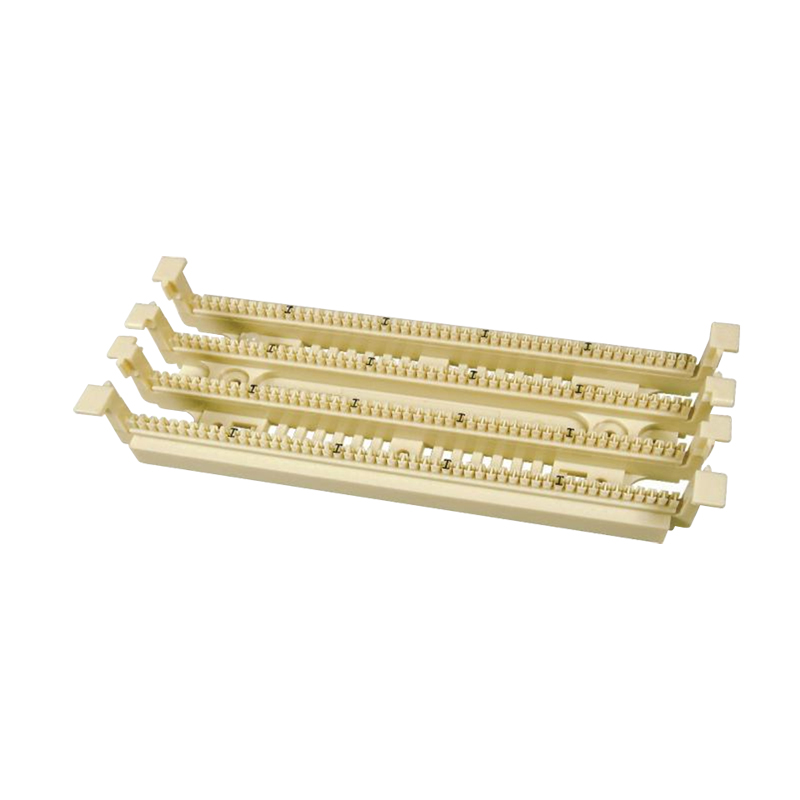

110 Wring Blocks WB100-A3W

110 Wring Blocks WB100-A3W

Wall-mount 110 wiring blocks create compact,  adaptable 110 termination field for voice and data by mounting 110 wiring bases to the wall or a backboard. Bases come in 100 pair densities. The 100-pair bases may be ordered with or without standoff legs which provide more room behind the base for cable.

  • TECHNICAL SPECIFICATION
● Type : 100 pairs rack mount 110 wiring block Available with legs or without legs to the wiring base.
● Easy to adjust, easy to embed wires in Wiring blocks are designed to support voice and high-speed data application.
● Offering a reliable and economical high-density system.
● The terminal blocks accommodate 22-26 AWG with a insulation diameter of 0.4-0.64 mm.
● IDC contact material: phosphor bronze with tin plating over nickel Available with T568 A .T568 B wiring pattern.
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

WB0100-A3W

100 pair wiring block without legs

Beige

1PCS

100PCS

L 54cm×W 49cm×H 22cm

5.00KG
