Description
|
Parameter
|
|
Contact resistance(max)
|
100mΩ
|
|
Insulation resistance（min）
|
500MΩ
|
|
Return loss（dB）
|
5.8dB
|
|
Next（dB）
|
4.7dB
|
|
Ps next(dB)
|
5.5dB
|
● Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements
● Shielding protects against EMI/RFI interference

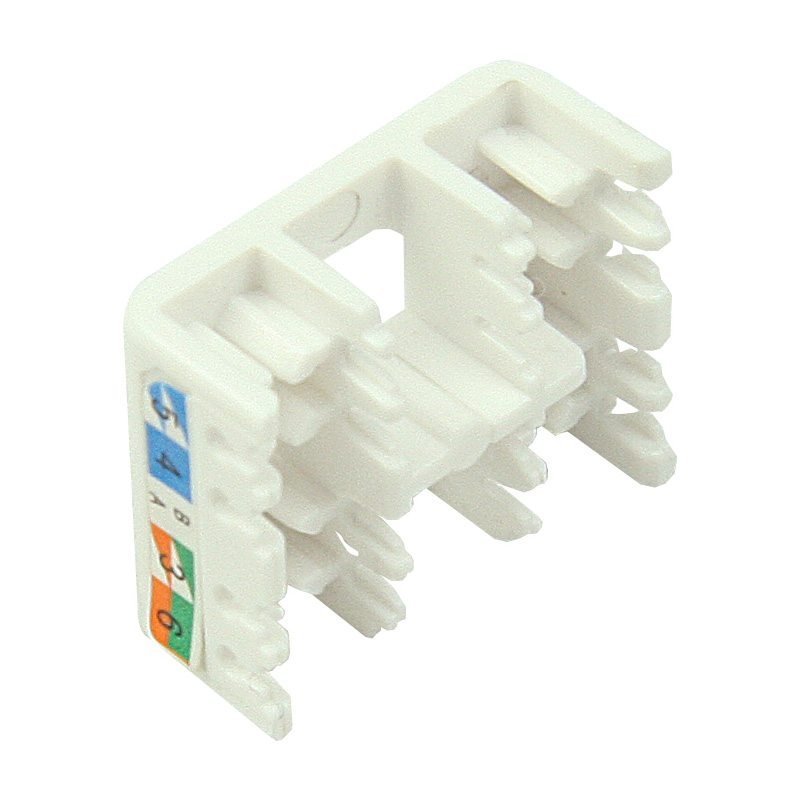

● Housing : high temperature thermoplastic
● Compact jack design,8 positions and 8 conductors
● Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
● Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
● Easy to be terminated, low attenuation loss and high return loss
● High reliability and superior performance
● Available in different colors
|
Part number
|
Description
|
standard color
|
Inner box
|
Carton
|
Carton measurement
|
Carton weight
|
|

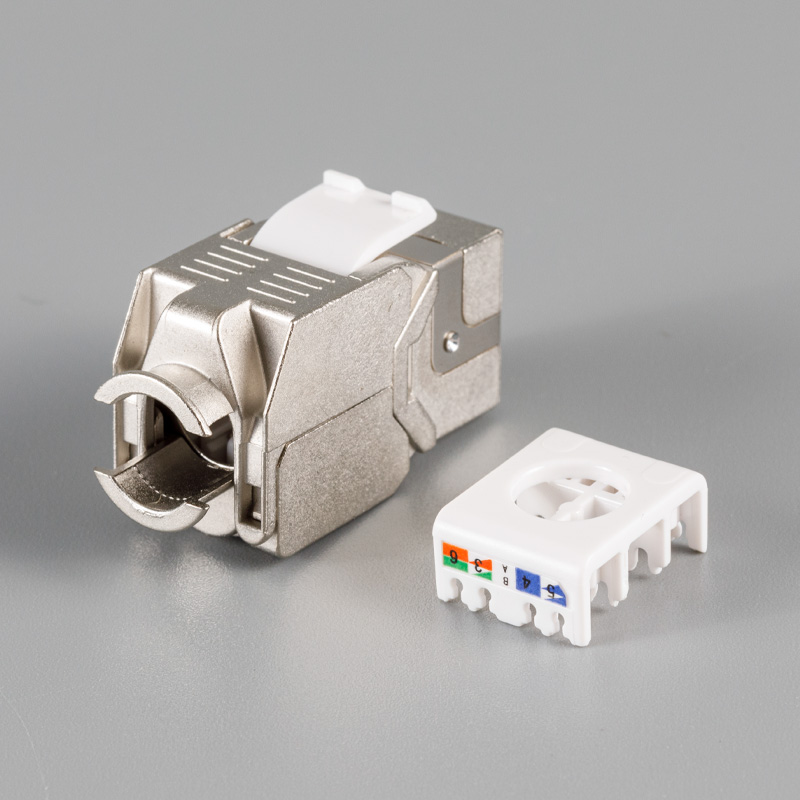

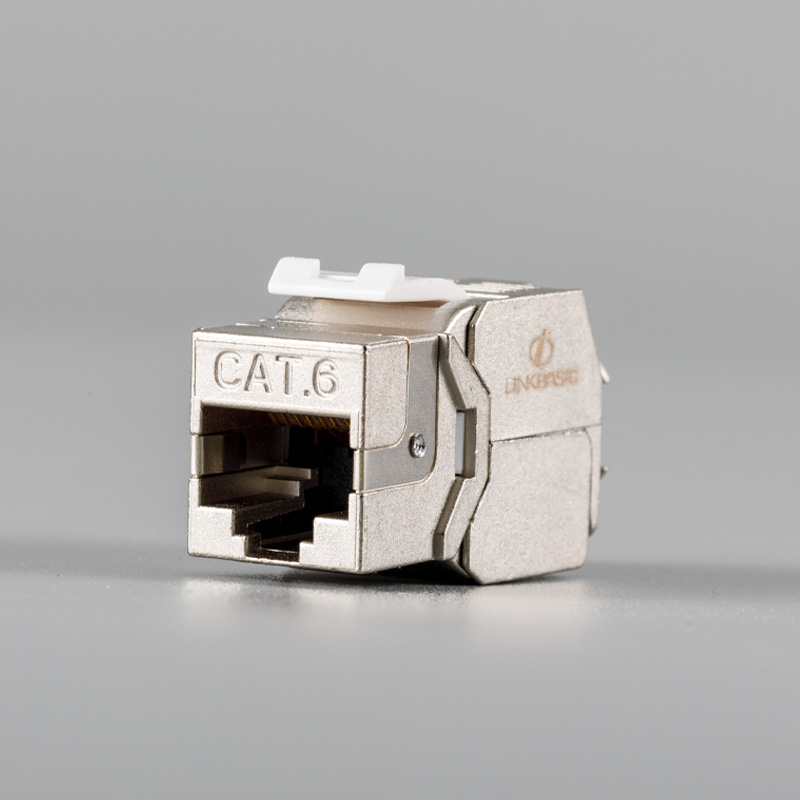

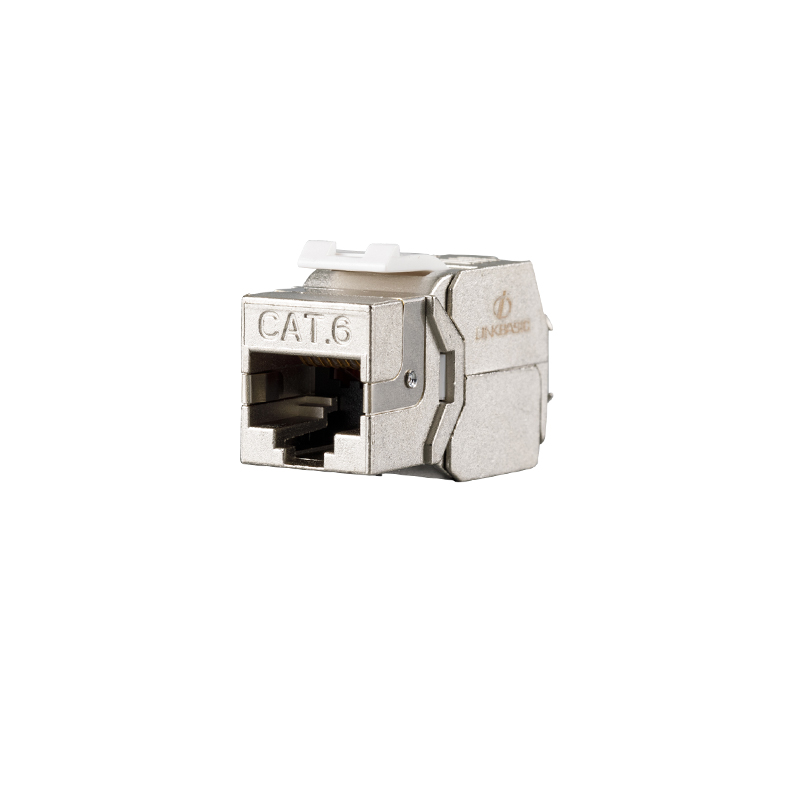

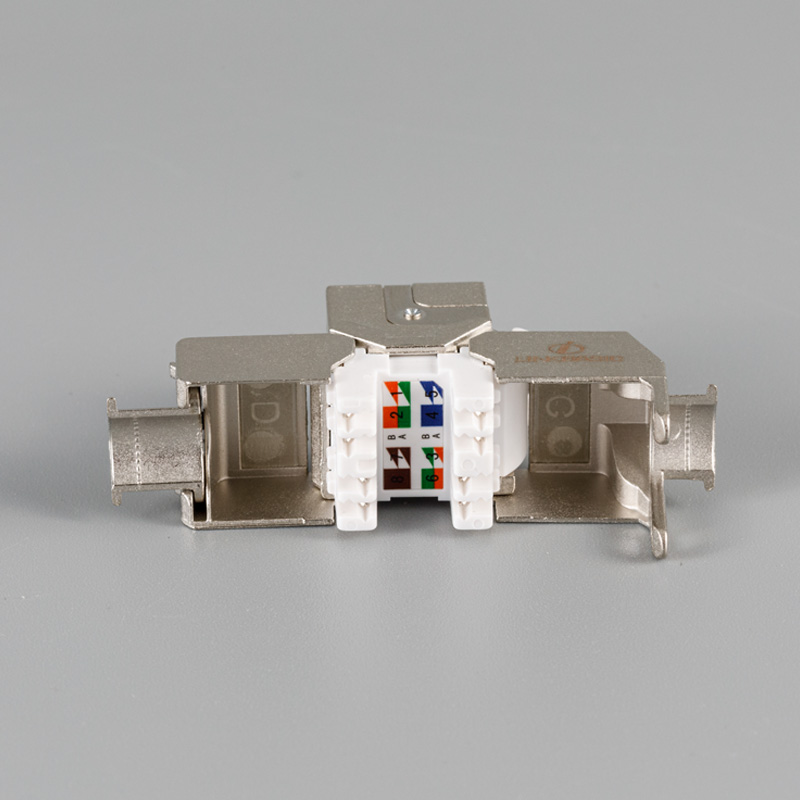

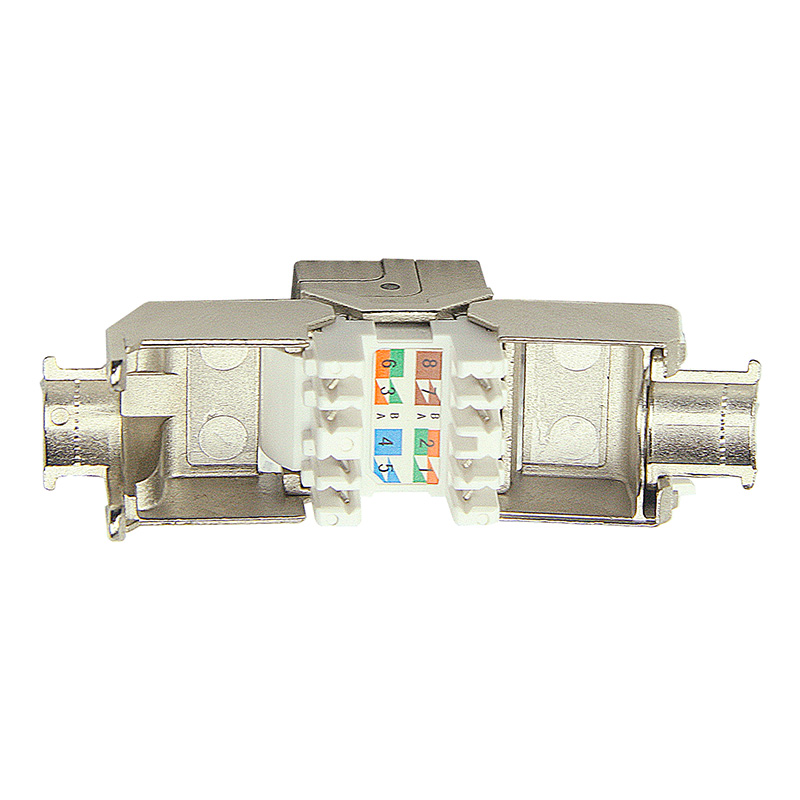

JKS09-SC6
|
Cat6 shielded keystone jacks (180 degrees)
|
Silver
|
20PCS
|
200PCS
|
L 53.5cm×W 31.3cm×H 23.4cm
|
9.20KG
|
