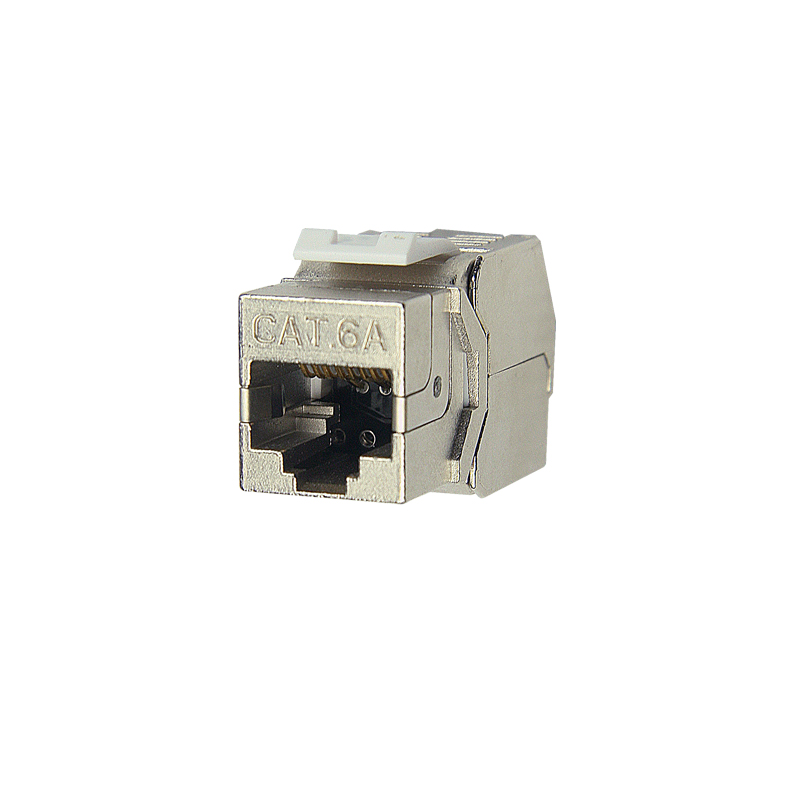

Cat 6A FTP keystone jack JKS09-SC6A

Cat 6A FTP keystone jack JKS09-SC6A

 The new style Jack provides Category 6A system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high-density connectivity in the work area and telecommunications room.

  • ELECTRICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz

≤5.6 nF/100M

MAX. Capacitance

unbalance (pF/ 100m)

≤330pF/100M

Nominal Velocity of

Propagation

68.2%

Max. Delay Skew (ns/100m)

45ns/100M

Max. Conductor DC

Resistance @ 20 Deg. C

7.8Ω /100M

Max. DC Resistance

unbalance @ 20 Deg. C

≤5%

Max. Insulation resistance

(MΩ/ k m)

5000

Max. Operating Voltage-UL

300V
  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance（min）

500MΩ

Return loss（dB）

5.8dB

Next（dB）

4.7dB

Ps next(dB)

5.5dB
  • TECHNICAL SPECIFICATION
● Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements
● Shielding protects against EMI/RFI interference
● Housing : high temperature thermoplastic
● Compact jack design,8 positions and 8 conductors
● Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
● Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
● Easy to be terminated, low attenuation loss and high return loss
● High reliability and superior performance
● Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKS09-SC6A

Cat6A shielded keystone jacks (180 degree)

Silver

20PCS

200PCS

L 53.5cm×W 31.3cm×H 23.4cm

9.20KG
