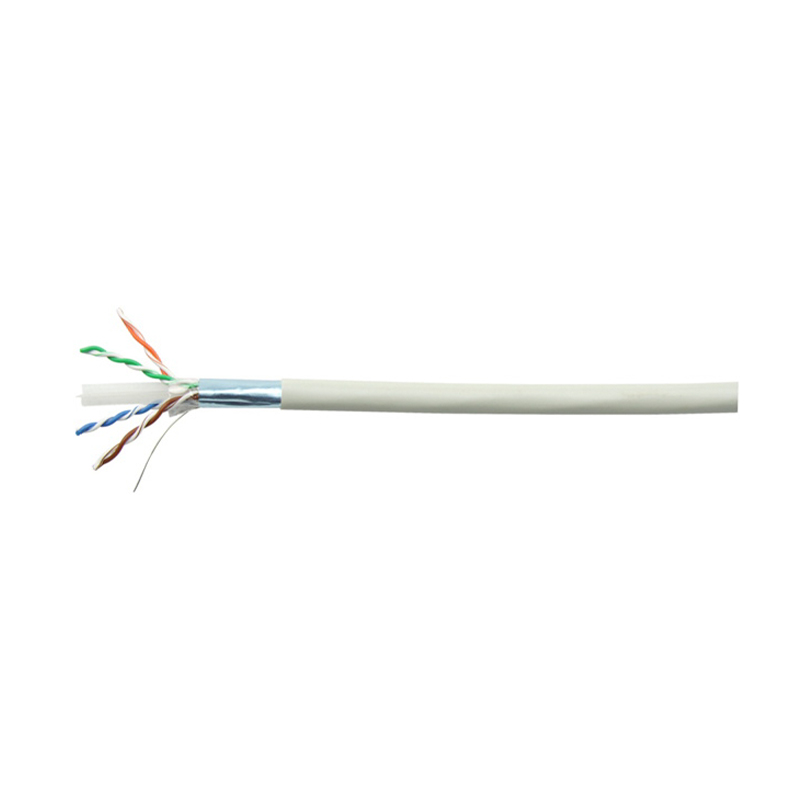

Cat 6A FTP Solid Cable CLA04-SFC6A

Cat 6A FTP Solid Cable CLA04-SFC6A

● Rated Temperature:70℃
● Reference Standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
● Solid Bare Copper Conductor
● Colour-coded PE insulation
● Rip Cord (Optional)
● PVC or LSZH jacket
● Packaging: Reel, Reel in Box
  • ELECTRICAL CHARACTERISTICS
● 100 Base-T4
● 100Base-TX
● 100VG-AnyLAN
● 1000Base-T
● 1000Base-TX
● 155Mbps ATM
● 622Mbps ATM
  • CONSTRUCTION

Structure

Construction

FTP

Number of Pairs

4 Pairs

AWG

23AWG

Conductor Dimension (mm)

0.575±0.005

Solid or Stranded;

Bare or Tinned

Single-Strand Solid Pure Copper

Insulation

Insulation material

HDPE

Insulation Dimension (mm)

1.15±0.08

Number Colour

(Ring or Strip Marking)

1.White/B[ue(Ring) & Blue
2.White/0range(Nng) & Oange
3.White/Gem(Rhg) & Green
4.White/Brown(Ping) & Btuwn

Cross Filler

Yes

Shield

IndividuaISinleld & Material

No

Outer Shield & Material

Yes (AL Foil)

Drain Wire

Yes (Tinned Copper)

Outer Jacket

Outer Jacket Material

PVC or LSZH

Outer Jacket Ripcord

Based On Customer Requirements

Overall Nominal Diameter (mm)

8.1±0.3
  • MECHANICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz

≤5.6 nF/100M

MAX. Capacitance

Unbalance (pF/ 100m)

≤330pF/100M

Nominal Velocity of

Propagation

60%

Max. Delay Skew (ns/100m)

45ns/100M

Max. Conductor DC

Resistance @ 20 Deg. C

9.5Ω /100M(23AWG)

Max. DC Resistance

Unbalance @ 20 Deg. C

≤5%

Max. Insulation Resistance

(MΩ/ k m)

5000

Max. Operating Voltage-UL

300V
  • APPLICATION

Operating Temp. Range

-20~70℃

Max. Recommended

110N

PullingTension

Min. Bend Radius (Install)

8 x O.D.

Flame Test

CMR
  • ORDER INFORMATION

Part Number

Description

AWG

Standard color

Packing Type

Carton

CLA04-SFC6A-LSZH

Cat 6A FTP Solid Cable

23AWG

RAL7035

Reel

305M(100FT)
