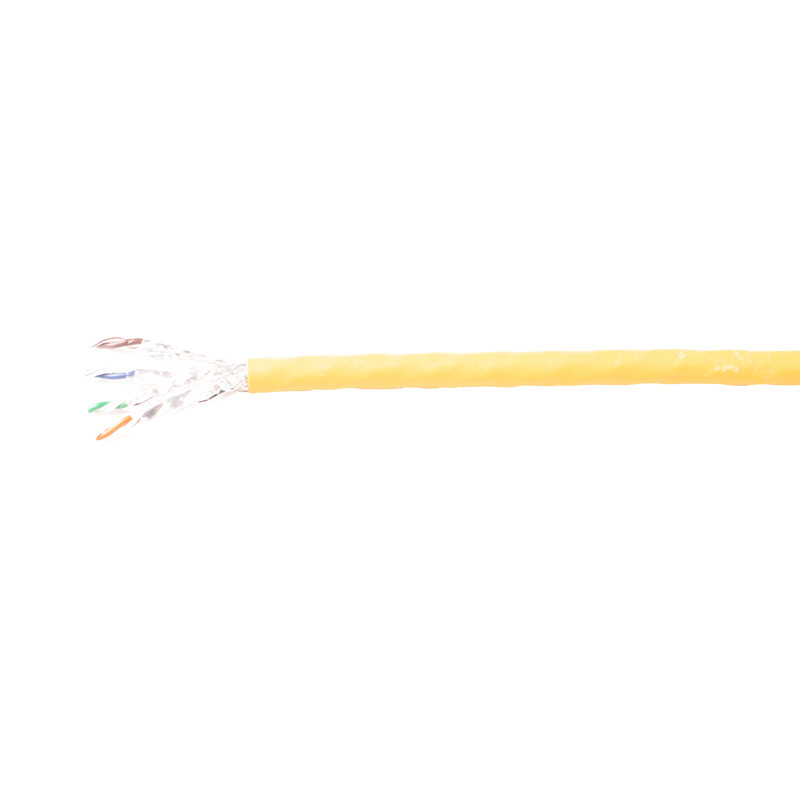

4 TWISTED PAIR CAT8 CABLE

4 TWISTED PAIR CAT8 CABLE

● With High quality Electrical and Mechanical performance Cat.8.2 Solid Cable
● Reference Standard:IEC61156-5、ISO/IEC 11801、ULSubject444、YD/T1019
  • PRODUCT FEATURES
● High Level Solid cable for Data Center
● Application for maximum 30m link length in 40GBase-T application data center of EoR / ToR
● Applications for digital and analog voice video and data signal transmission
● Suitable for all applications up to 2000MHz ICT network
● Suitable for Ethernet(PoE / PoE+) power supply
● Through the separate wire pair shielding and overall copper mesh braided shielding to achieve effective shielding
● Compact cable design
● Compatible with all currently compatible hardware for EN 50173 and ISO/IEC 11801
  • ELECTRICAL CHARACTERISTICS

Nom. mutual capacitance

≦5.6 nF/100m (@1kHz

Pair to ground capacitance unbalance

≦1200 pF/100m

Nominal velocity of propagation

74%

Max. delay skew

25 ns/100m

Max. conductor DC resistance

7.0 Ω/100m (@ 20 ℃)

Min. insulation resistance

5000 MΩ.km
  • CONSTRUCTION

Structure

Construction

S/FTP

Number of Pairs

4 Pairs

Conductor

AWG

22 AWG

Conductor material

Solid bare copper

Insulation

Insulation material

Foam PE

Shield

Individual shield & material

AL-Foil

Primary overall shield & material

AL-MG alloy wire braid

Overall nominal dimension

8.50 ±0.30 mm



  • MECHANICAL CHARACTERISTICS

Operating temperature range

-20 ℃~ +75 ℃

Max. recommended pulling tension

110N

Min. bend radius (install)

8x O.D.
  • ORDER INFORMATION

Part Number

Description

AWG

Packing Type

Length

CLA04-SFC8

CAT8 FTP solid cable

22AWG

Reel

305m(1000ft)

CLA04-SFC8-LSZH

CAT8 FTP solid cable,LSZH

22AWG

Reel

305m(1000ft)
