Cat8 System

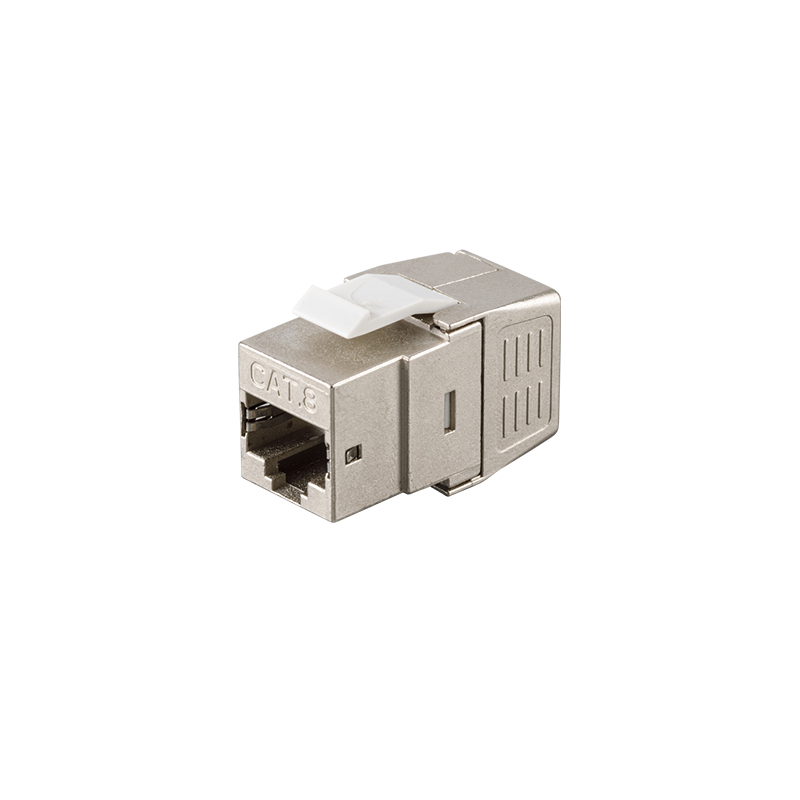

CAT8 KEYSTONE OUTLET

CAT8 KEYSTONE OUTLET

● Suitable for CAT8 Shielding system, connecting 22-26AWG single strands and 24AWG strands, for termination of horizontal subsystems

● Reference Standard:TIA/EIA-568C、YD/T926.3-2009、ISO/IE11801-2008

  • PRODUCT FEATURES
● Comply with T568A and T568B line sequence
● Suitable for 10/100/1000/10G/40GBASE-T Fast Ethernet,
● ATM155Mbps/622Mbps system applications
● The most important type of connecting device in a wiring system, consisting of a plug and a socket
● Connected between wires to achieve electrical continuity of the wires
● Communication socket for equipment room and work area
● Unique nickel-plated copper cladding for good shielding
● The socket core adopts 50μ gold plating, the lossless contact insertion are more than 750 times, and the wire port supports more than 200 times oftermination.
● Contact pin contacts use high and low misalignment technology to effectively reduce Near End Cross-Talk values
● Embedded design, the keystone jack can be installed on the shielded distribution frame to form a modular distribution frame
  • CONSTRUCTION

Description

Parameter

Contact Resistance(max)

100mΩ

Insulation Resistance(min)

500MΩ

Return Loss(dB)

5.8dB

  • ORDER INFORMATION

Part Number

Description

Inner Box

Carton Measurement

JKS09-SC8

CAT8 shielded keystone outlet

20pcs

53cm*31cm*23cm
