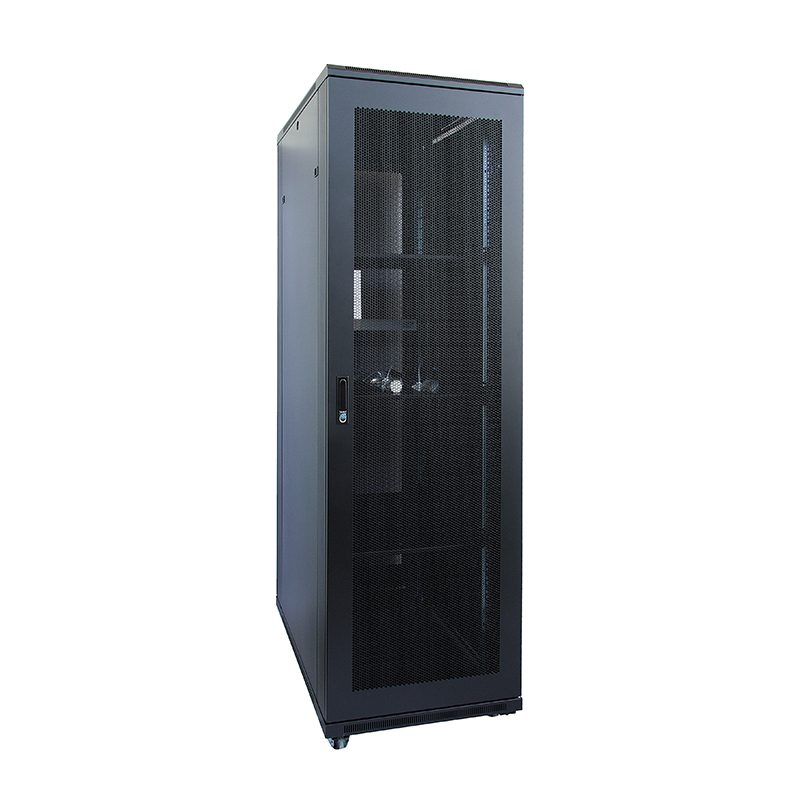

Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
● Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
● Exquisite design with precise craftsmanship
● Good compatibility, adapt to more servers. Perfect ventilation
● Vented front door and rear door enable ventilation and reliable operation
● The top and bottom wiring channel can be closed and adjusted.
● Optional plinth to meet under base wiring, ventilation and rat-proof
● Rack’s side panel can be easily assembled
● Adjustable feet and heavy duty castors are available at the same time, static loading: 1000kg. (with adjustable feet).
● Advanced lock
● Surface finish: degreasing, pickling, phosphating, powder coating
● Available in black and gray
● Height, width, and depth selectable, full range of optional accessories.
● Cold-rolled steel sheet. Thickness for frame 1.2mm, mounting rail 0mm(1.5mm for 600mm depth cabinet), fixed shelf 1.2mm, side panel 1.2mm. Thickness for smoky grey glass 5mm.
|
Part No |
Capacity/U |
Width/mm |
Depth/mm |
Height/mm |
CM/Width/m |
CM/Depth/m |
CM/Height/m |
Volume/（M3 ） |
|
NCB18-66-*#☆ |
18U |
600 |
600 |
988 |
0.63 |
0.63 |
1.02 |
0.40 |
|
NCB22-66-*#☆ |
22U |
600 |
600 |
1166 |
0.63 |
0.63 |
1.2 |
0.48 |
|
NCB22-68-*#☆ |
22U |
600 |
800 |
1166 |
0.63 |
0.83 |
1.2 |
0.63 |
|
NCB27-66-*#☆ |
27U |
600 |
600 |
1388 |
0.63 |
0.63 |
1.42 |
0.56 |
|
NCB32-66-*#☆ |
32U |
600 |
600 |
1610 |
0.63 |
0.63 |
1.64 |
0.65 |
|
NCB32-68-*#☆ |
32U |
600 |
800 |
1610 |
0.63 |
0.83 |
1.64 |
0.86 |
|
NCB37-66-*#☆ |
32U |
600 |
600 |
1833 |
0.63 |
0.63 |
1.86 |
0.74 |
|
NCB37-68-*#☆ |
37U |
600 |
800 |
1833 |
0.63 |
0.83 |
1.86 |
0.97 |
|
NCB37-610-*#☆ |
37U |
600 |
1000 |
1833 |
0.63 |
1.04 |
1.86 |
1.22 |
|
NCB37-88-*#☆ |
37U |
800 |
800 |
1833 |
0.83 |
0.83 |
1.86 |
1.28 |
|
NCB37-810-*#☆ |
37U |
800 |
1000 |
1833 |
0.83 |
1.04 |
1.86 |
1.61 |
|
NCB42-66-*#☆ |
42U |
600 |
600 |
2055 |
0.63 |
0.63 |
2.08 |
0.83 |
|
NCB42-68-*#☆ |
42U |
600 |
800 |
2055 |
0.63 |
0.83 |
2.08 |
1.09 |
|
NCB42-610-*#☆ |
42U |
600 |
1000 |
2055 |
0.63 |
1,04 |
2.08 |
1.36 |
|
NCB42-611-*#☆ |
42U |
600 |
1100 |
2055 |
0.63 |
1.14 |
2.08 |
1.49 |
|
NCB42-612-*#☆ |
42U |
600 |
1200 |
2055 |
0.63 |
1.24 |
2.08 |
1.62 |
|
NCB42-86-*#☆ |
42U |
800 |
600 |
2055 |
0.83 |
0.63 |
2.08 |
1.09 |
|
NCB42-88-*#☆ |
42U |
800 |
800 |
2055 |
0.83 |
0.83 |
2.08 |
1.43 |
|
NCB42-810-*#☆ |
42U |
800 |
1000 |
2055 |
0.83 |
1.04 |
2.08 |
1.80 |
|
NCB47-66-*#☆ |
47U |
600 |
600 |
2277 |
0.63 |
0.63 |
2.3 |
0.91 |
|
NCB47-68-*#☆ |
47U |
600 |
800 |
2277 |
0.63 |
0.83 |
2.3 |
1.20 |
|
NCB47-610-*#☆ |
47U |
600 |
1000 |
2277 |
0.63 |
1.04 |
2.3 |
1.51 |
|
NCB47-88-*#☆ |
47U |
800 |
800 |
2277 |
0.83 |
0.83 |
2.3 |
1.58 |
|
NCB47-810-*#☆ |
47U |
800 |
1000 |
2277 |
0.83 |
1.04 |
2.3 |
1.99 |
Part number configuration tool:
NCB18---66 ( 18U)
NCB 18-66 ( x) Use the x to specify the capability of the cabinets:
18= 18 U 22 = 22 U 27 = 27 U 32 = 32U 42=42U 46= 46U
