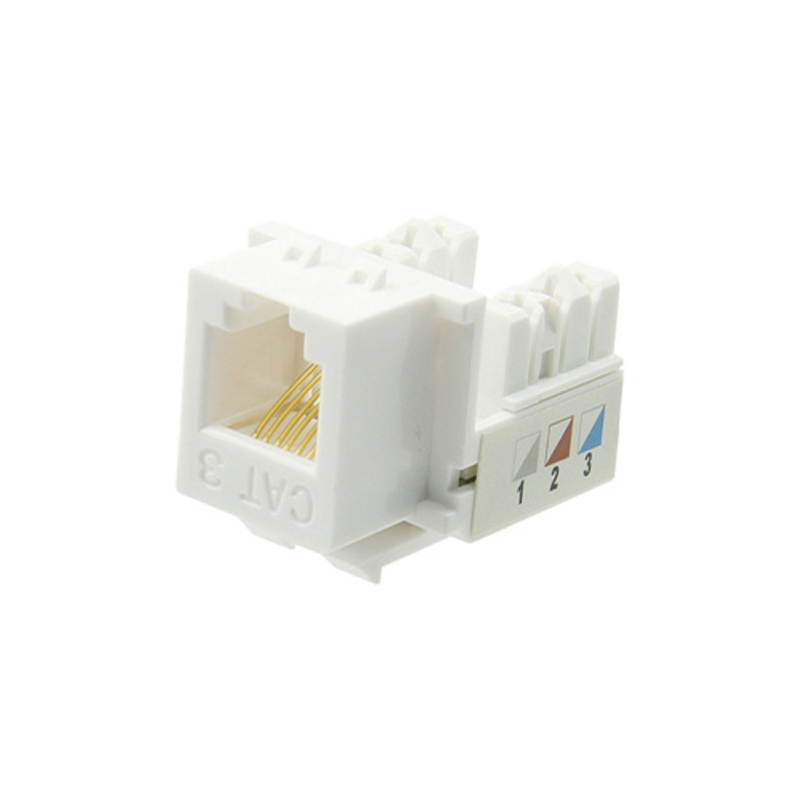

Voice UTP keystone jacks JKR06-UC3

Voice UTP keystone jacks JKR06-UC3

This insert works great to add a Telecommunication connection into any room of the house office, it features dual color-coded wiring labels with both T568A and T568B wiring pattern, a rear termination field for easy termination of a jack while installed in a wall plate, surface mount boxes, and blank patch panels for a wide variety of applications.

  • CONSTRUCTION

Description

Parameter

Contact resistance(max)

100mΩ

Insulation resistance（min）

500MΩ

Return loss（dB）

5.8dB

Next（dB）

4.7dB

Ps next(dB)

5.5dB
  • APPLICATION
● Available in Cat5E, T568A/B wiring, meet or exceed TIA/EIA VOICErequirements
● Housing : high temperature thermoplastic
● Compact jack design,6 positions and 6 conductors
● Contact : phosphor bronze, phosphor bronze with 6 to 50μ"gold plate
● Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
● Easy to be terminated, low attenuation loss and high return loss
● High reliability and superior performance
● Available in different colors
  • ORDER INFORMATION

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKR06-UC3

Communication keystone jacks

White

25PCS

250PCS

L 53.5cm×W 31.3cm×H 23.4cm

4.00KG
