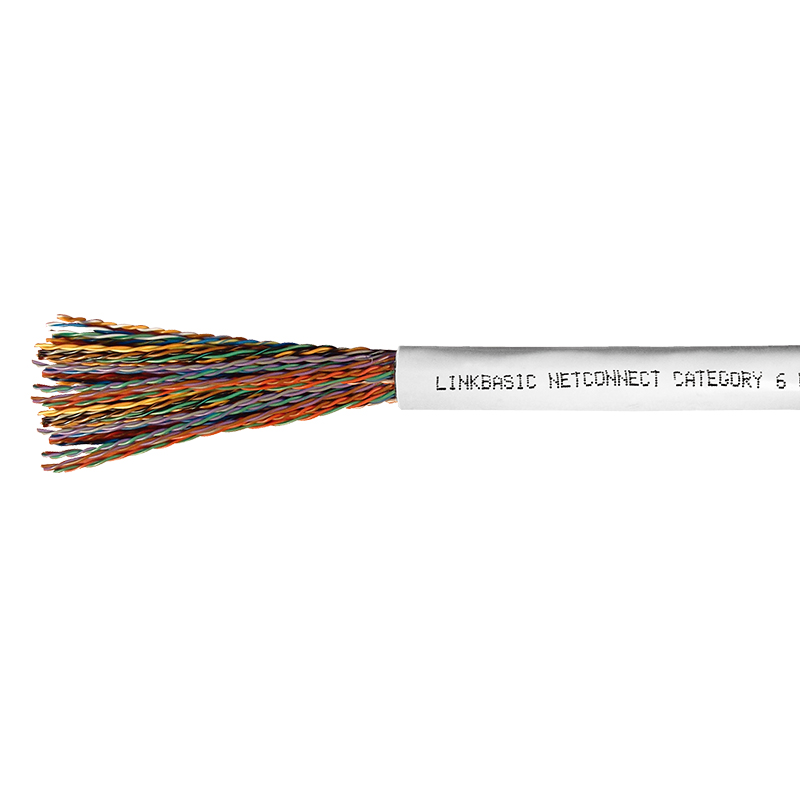

Voice UTP solid cable CLA50-UC3

Voice UTP solid cable CLA50-UC3

● Rated temperature:70℃
● Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801
● Solid bare copper conductor
● Colour-coded PE insulation
● Rip cord (optional)
● PVC or LSZH jacket
● Packaging: Reel

Contact Us PDF-download

ELECTRICAL CHARACTERISTICS

MAX. Matual Capacitance @ kHz	≤6.6 nF/100M
MAX. Capacitance unbalance (pF/ 100m)	≤330pF/100M
Nominal Velocity of Propagation	65%
Max. Delay Skew (ns/100m)	45ns/100M
Max. Conductor DC Resistance @ 20 Deg. C	9.38Ω /100M
Max. DC Resistance unbalance @ 20 Deg. C	≤3%
Max. Insulation resistance (MΩ/ k m)	150
Max. Operating Voltage-UL	300V

CONSTRUCTION

Structure	Construction	UTP
	Number of Pairs	50 Pair
	AWG	24AWG
	Conductor Dimension (mm)	0.493
	Solid or Stranded; Bare or Tinned	Solid Bare Copper
Insulation	insulation material	HDPE,FRPE
	Insulation Dimension [mm)	0.83
	Number Colour (Ring or Strip marking)	/
	Cross Filler	No
Shield	IndividuaISinleld & Material	No
	Outer Shield & Material	No
	Drain Wire	No
Outer Jacket	Outer Jacket Material	PVC or（LSZH）
	Outer Jacket Ripcord	Per customer request
	Overall Nominal Diameter (mm)	Per Customer reqyest

MECHANICAL CHARACTERISTICS

Operating Temp. Range	-20~75℃
Bulk Cable Weight (KG)	108KG
Max. Recommended PullingTension	-
Min. Bend Radius (Install)	126mm
Flame Test	CMX, CMR, CM

APPLICATION

● 10/100 Base-T4
● 10/100 Base-TX

ORDER INFORMATION

Part number	Description	AWG	Standard color	Packing Type	Carton	Carton measurement	Carton weight
CLA50-UC3	50pair UTP SolidCable	24AWG	RAL7035	Reel	305m(1000ft)	Φ55cm× H40cm	108.00KG
